What is a Gasket in an Engine? Its Types & Functions | Signs of Blown Head Gaskets | FAQs & PDF

What are Engine Gaskets?

Engine gaskets provide a seal between two surfaces of the engine. Due to their materials and functions, engines are exposed to temperature and pressure changes, and engine parts are subject to movement. As the engine heats and cools, compression and vacuum create pressure that causes engine parts to expand, contract, move apart, and pull together.

When the engine is subjected to forces and loads from all directions, the seals are heated, cooled, and rubbed. Cold seals behave differently than hot seals, just as seals under pressure behave differently under reduced pressure. We will look at different types of gaskets for your vehicle.

What are the types of engine gaskets?

  1. Cylinder head gasket
  2. Oil pan gasket
  3. Manifold gaskets
  4. Pump gasket

Cylinder Head Gasket

Typically made of either copper and asbestos or steel and asbestos, this gasket prevents coolant and engine oil from leaking into the cylinder or out of the vehicle.

Oil Pan Gasket

Types of Engine Gaskets
Types of Engine Gaskets

These are usually made of a fibreboard core coated with cork, synthetic rubber, or latex rubber. They act as a seal between the bottom of the oil pan and the engine block.

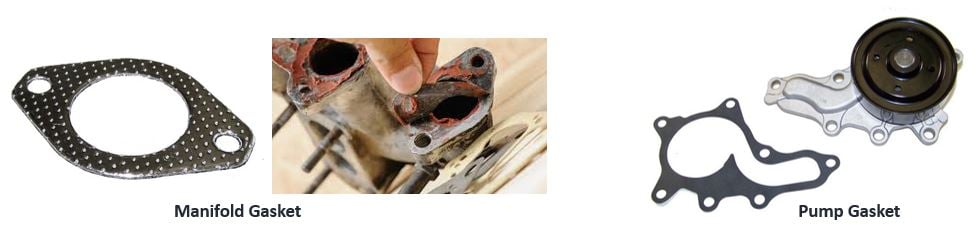

Manifold Gasket

These are usually made of metal-coated asbestos or stamped steel. They act as part of the exhaust system, preventing air, oil, and coolant leakage by sealing the gap between the manifold and the engine.

Pump Gasket

This type of gasket can be made from a variety of materials and seals the water pump and engine block together.

Types of Engine Gaskets
Types of Engine Gaskets

What does an engine head gasket do?

Now that you have a quick understanding of why and how you need gaskets in your vehicle system, let’s look at some other features of gaskets and how they are made.

Engine Gaskets Handle Pressure

Of course, the main purpose of the head gasket is to withstand extreme pressures and temperatures, but that is a lot of work. This requires extreme maintenance with coolant in the combustion chamber.

Gaskets are responsible for the smooth functioning of the engine.

Because of this, they are basically made looking for the best materials for high performance.

Engine Gaskets Maintain Temperature

Under extreme pressures and temperatures, gaskets also contribute to the oil and coolant requirements of engine components. Gaskets prevent damage from overheating and seal coolant passages between the cylinder head and engine block.

In all cars, the temperature is controlled by a thermostat. When the engine is cold, coolant will not flow out of the engine. The thermostat opens as soon as the engine temperature starts to reach the optimum temperature of about 200 degrees. Thermostats reduce engine wear and build-up of harmful deposits that lead to harmful chemical emissions.

How do you know if your head gasket is blown?

Signs of Blown Head Gasket
Signs of Blown Head Gasket

What are various signs of a blown head gasket:

If you have a blown head gasket, there are some signs and symptoms to look out for. See the list below for details.

  • Head gasket failure can be caused by excessive engine overheating due to clogged radiators, coolant leaks, fan failures, etc. However, a blown head gasket will also cause the engine to overheat. Hot exhaust gases can enter the cooling system, or coolant can enter the cylinder and burn as steam. In both cases, the result is engine overheating. Also, running overheated can warp aluminum cylinder heads and steam can damage catalytic converters, significantly increasing repair costs.
  • A simple coolant or oil leak can occur if the head gasket between the water or oil passages and the outside of the engine fails. This is the worst version of a blown head gasket, but it’s still serious. It doesn’t present themselves as direct problems other than causing failure, but they can cause serious engine problems if the coolant level gets too high. A second problem is that leaked oil can enter hot exhaust pipes and cause irritating smoke and fire.
  • A damaged head gasket usually produces large amounts of sweet-smelling white smoke from the exhaust pipe. This is due to the antifreeze penetrating the gaskets in the cylinder and being converted to steam as part of the combustion process. Less commonly, a leak from the oil passage into the cylinder can occur, producing blue smoke. Any of these types of gasket failure will create combustion pressure in the cooling system or oil ventilation system. If your radiator hose suddenly blows out of the water outlet or your oil dipstick won’t stay in place, this could be the cause.
  • One of the most common symptoms of a failing head gasket is a milky sludge under the oil filler cap or dipstick, sometimes jokingly referred to as a “milkshake”. This is because coolant enters the oil and vice versa. This is not definitive proof of a head gasket failure but is generally a good indicator and a sure sign that the engine needs to be disassembled to find the source of the fouling. If your oil is contaminated with antifreeze, your engine’s bearings will wear out quickly with every ride.
  • Repairs require at least a flush of the engine oil, replacement of the oil filter, and often a complete disassembly of the lower end of the engine to ensure the bearings are not damaged and remove any contaminants in the oil.
  • If the cylinder head gasket does not release compressed air/fuel, the compression in that cylinder will drop. This loss of compression causes the engine to run rougher and significantly reduces engine performance. This kind of error is usually accompanied by noise, such as an exhaust leak.
  • White milky oil is present.
  • Dirty or worn spark plugs.
  • Cooling system integrity is compromised.
  • Air bubbles in the radiator or coolant overflow tank.
  • If you experience one or more of these signs of a blown head gasket, it’s time to contact a reputable and respectable local mechanic so you can get results you can trust.

What causes a head gasket to blow?

The most common cause of blown or damaged head gaskets is often the result of overheating the engine. High engine temperatures are usually caused by a lack of coolant in the radiator, usually by a leak. Depending on the material, some seals may degrade faster than others. For example, aluminum expands rapidly when heated.

Metals with high coefficients of thermal expansion are sensitive to heat. Higher temperatures can change the shape of objects, which can be detrimental. Thermal expansion and deformation of the cylinder head weaken its integrity and prevent the head gasket from sealing properly.

If your head gasket blows, it’s important to get it repaired immediately. Continuing to drive the vehicle with a blown gasket can cause severe and irreparable engine damage. When a gasket is blown out, it can no longer function as a gasket, allowing pressure to escape, and greatly reducing engine performance. This is one of the few signs of a blown head gasket. Additionally, oil and coolant passages can begin to leak in areas that should not.

When coolant enters the combustion chamber, it can mix and dilute the engine oil while reducing the cooling capacity of the cooling system, causing overheating of the engine.

FAQs (Frequently Asked Questions)

Will a car start and run with a blown head gasket?

A severe head gasket leak will cause the engine to lose compression. This can cause the engine to idle rough, knock, or stall. However, other issues can cause the engine to run rough or knock.

How long can a car run with a blown head gasket?

Some engines die completely within a day. The car may be drivable for a week, or it may be usable for several months with temporary repairs. As a rule of thumb, we recommend not riding if you suspect a head gasket issue

What happens if you keep driving with a blown head gasket?

A blown or cracked head gasket can cause problems. Coolant may leak from the engine. As a result, coolant is lost, and the engine can overheat after long runs.

Can you replace the head gasket without removing the engine?

Head gaskets are placed about halfway down the engine to seal the confluence of the engine halves. This means you must remove half the engine to replace it

Summary

Engines have different types of gaskets such as cylinder head gaskets, oil pan gaskets, manifold gaskets, and pump gaskets. The function of this gasket is to seal joints, prevent leaks, and ensure smooth operation. Defective gaskets tend to lead to problems related to leaks, overheating, and impact on engine operation.
